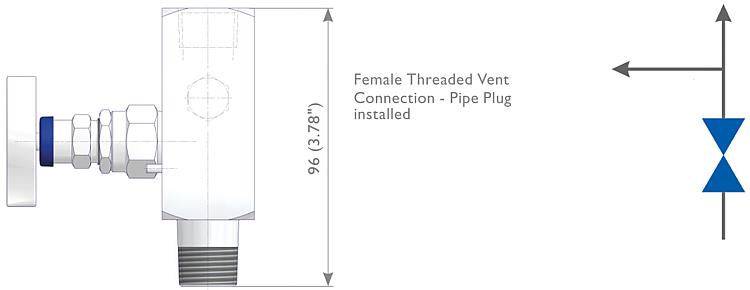

AS-Schneider E Series Gauge Valves GA Type are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches. The GA type is provided with a vent / test port, as standard 1/4 NPT Female. A pipe plug is installed in this port by default.
A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.Connections, materials, valve head unit designs and further options are available, please see below Ordering Information or more detailed under:
General InformationExample for a typical product acc. to the below mentioned Ordering Information:Part No.: GAMFSA-N4N4
G | Gauge Valve |
A | Vent Connection: 1/4 NPT Female plugged |
M | Inlet: Male Thread |
F | Outlet: Female Thread |
S | Material: 1.4401 / 1.4404 / 316 / 316L |
A | Bonnet: PTFE |
- | |
N4 | Inlet Thread Size: 1/2 NPT |
N4 | Outlet Thread Size: 1/2 NPT |
